DK238/DK270-M All-in-One Computer: A Flexible Desktop Solution for Modern Workspaces
Modern workplaces need computers that save space without sacrificing performance, connectivity, or ease of use. The DK238/DK270-M all-in-one computer combines a high-definition display, integrated desktop hardware, flexible adjustment options, and practical business features in one streamlined design.
Available with a 23.8-inch or 27-inch screen, this all-in-one PC is suitable for offices, schools, reception areas, retail environments, public service counters, and home workstations.
Clean Design with Flexible Viewing Options
The DK238/DK270-M features a slim flat-screen design that helps reduce desktop clutter. Its integrated structure places the computer components behind the display, eliminating the need for a separate tower and creating a cleaner, more professional workspace.
The adjustable stand supports flexible height adjustment and screen rotation. Users can position the display according to their sitting posture and viewing requirements. The screen can also be rotated for different applications, including portrait-oriented documents, digital signage, vertical webpages, and office software.
The square lifting base provides stable support while maintaining a compact footprint. The stand is also designed with a quick-release structure, making installation, adjustment, and maintenance more convenient.
Two Screen Sizes for Different Applications
The DK238/DK270-M series is offered in two screen sizes:
23.8-inch model with a 1920 × 1080 Full HD resolution.

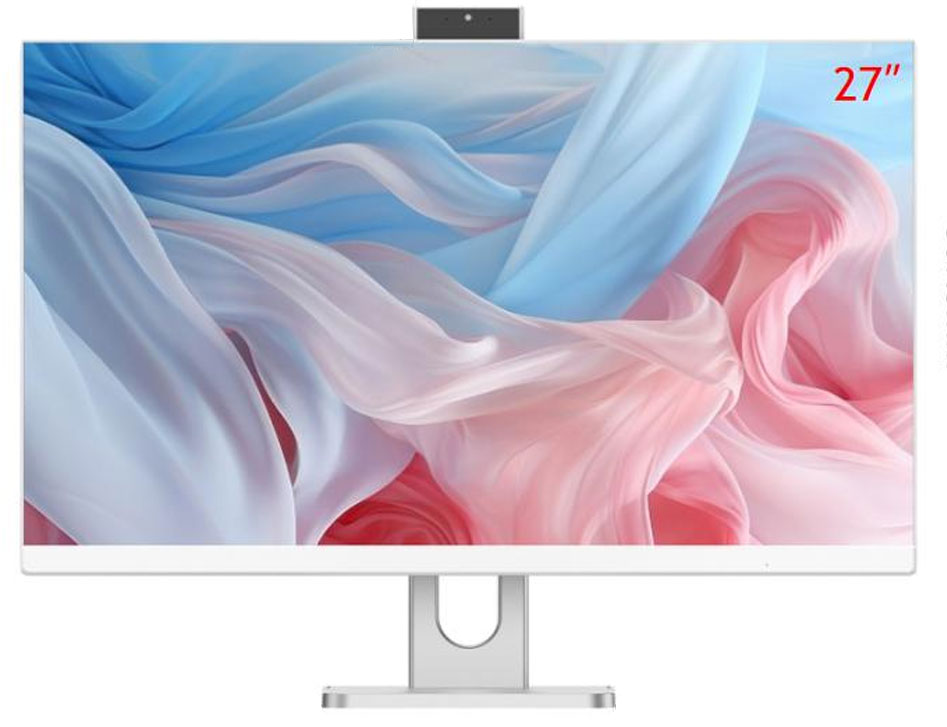

27-inch model with a 2560 × 1440 resolution.
Both versions use an IPS panel with a 16:9 aspect ratio and a 178° viewing angle. The IPS display helps provide consistent colors and clear images from different viewing positions, making the computer suitable for collaborative office environments and customer-facing applications.
The 23.8-inch model measures approximately 540.5 mm in width and 321.5 mm in height for the display area. The 27-inch version measures approximately 613.8 mm in width and 367.5 mm in height. The base width of both versions is approximately 229.9 mm.
The 27-inch model supports refresh rates of up to 144 Hz, which can deliver smoother motion for multimedia, interactive displays, and other applications that benefit from improved screen fluidity. The brightness is rated at 250 cd/m², while the static contrast ratio is 3000:1.
Integrated Features for Business and Commercial Use
Unlike a basic office monitor, the DK238/DK270-M can be configured with several integrated features to meet the requirements of different projects and industries.

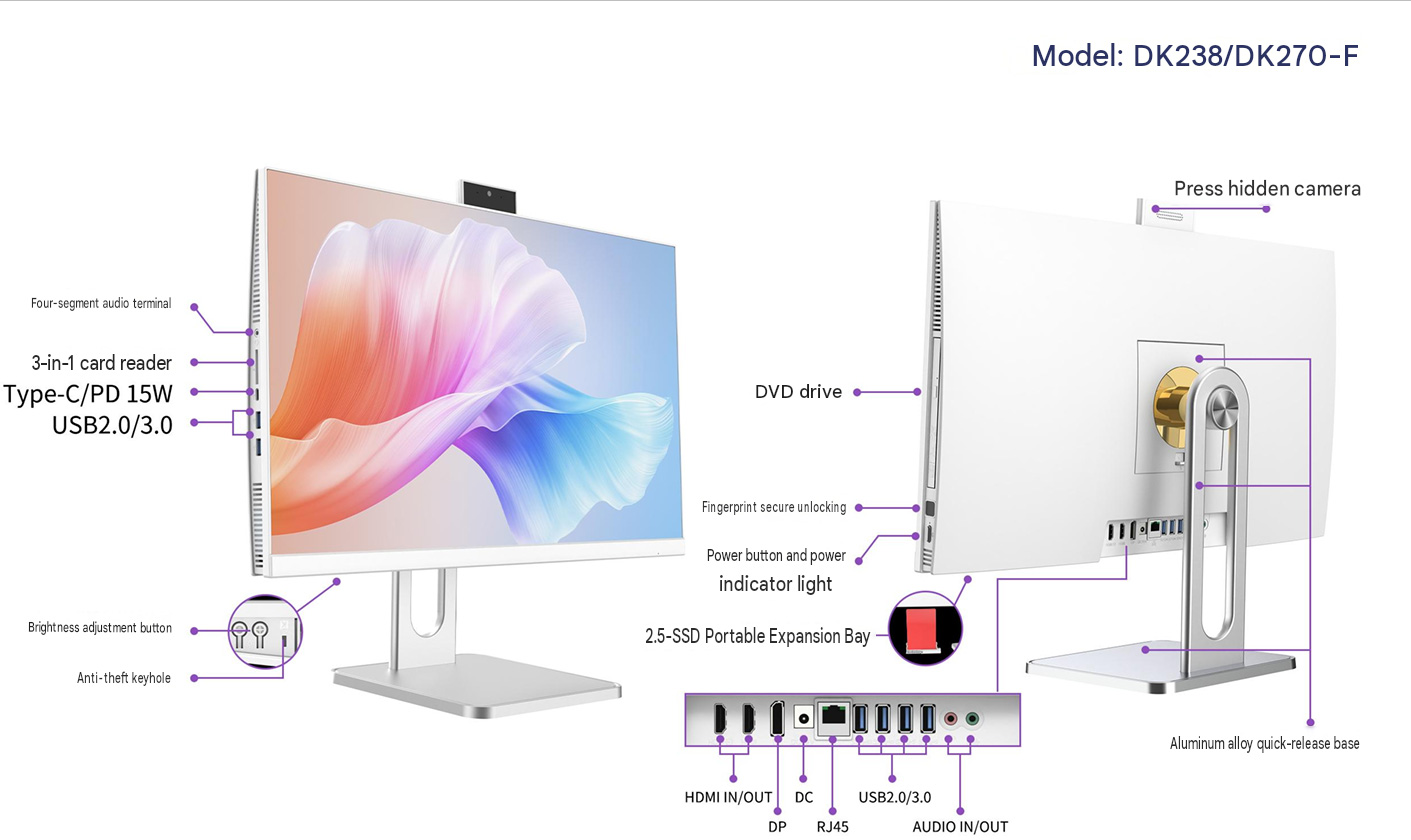

Depending on the configuration, the all-in-one computer can include:
A hidden pop-up camera for video meetings and online communication.
A fingerprint recognition module for convenient and secure user access.
An integrated DVD drive for reading optical media.
A 3-in-1 card reader for accessing commonly used memory cards.
A four-band audio terminal.
A 2.5-inch SSD expansion bay for additional storage flexibility.
An anti-theft Kensington lock slot.
A brightness adjustment button and power indicator.
The hidden camera design helps maintain a clean appearance when the camera is not in use. When needed, users can press the camera module to reveal it for video conferencing, remote learning, customer service, or online meetings.
Fingerprint recognition can also be useful in workplaces where controlled access and quick user authentication are important.
Comprehensive Connectivity
The DK238/DK270-M is designed with a practical selection of ports for office equipment, peripherals, displays, networks, and audio devices.
The available interfaces may include:
HDMI input/output.
DisplayPort.
DC power input.
RJ45 Ethernet port.
Multiple USB 2.0 and USB 3.0 ports.
Audio input and output.
Type-C interface with PD 15 W support.
VGA or COM interface, depending on configuration.
3-in-1 card reader.
These connection options allow the all-in-one PC to work with keyboards, mice, printers, barcode scanners, external storage devices, projectors, wired networks, and other business peripherals. The inclusion of USB 3.0 helps support faster data transfer for compatible devices, while the RJ45 port provides a stable wired network connection.
For specialized projects, the system can also be customized with additional interfaces or functions according to the application requirements.
Customizable Hardware Configuration
The DK238/DK270-M is suitable for OEM and ODM projects because the internal hardware configuration can be adapted to different performance and budget requirements.
The platform supports Mini-ITX motherboards measuring approximately 170 × 170 mm, as well as customized ITX motherboards measuring approximately 170 × 200 mm. This gives system integrators and brand owners greater flexibility when selecting processors, memory, storage, operating systems, and other internal components.
The computer can be configured for a variety of applications, such as:
Business office computing.
School and training-room deployment.
Reception and registration desks.
Point-of-sale and retail systems.
Industrial and commercial control terminals.
Digital signage and information kiosks.
Hotel, hospital, and public-service counters.
Home office and entertainment use.
The final performance depends on the selected motherboard, processor, memory, storage, and operating system. Customers can discuss their application requirements with the manufacturer to determine the most suitable configuration.
Space-Saving Office Computer
One of the main advantages of an all-in-one computer is its efficient use of space. By integrating the display and computer hardware into one unit, the DK238/DK270-M reduces cable clutter and frees up valuable desk area.
This design is especially useful for:
Small office desks.
Shared workstations.
Reception counters.
Classrooms and laboratories.
Retail checkout areas.
Customer service stations.
Home offices with limited space.
The adjustable stand also helps users create a more ergonomic workstation. The screen height, viewing angle, and orientation can be adjusted to support comfortable daily use.
Suitable for OEM and Wholesale Projects
As a manufacturer-focused all-in-one computer platform, the DK238/DK270-M can support different customization requirements. Customers may select from optional Gunpowder, Black, or White finishes, depending on their brand image and project environment.
Possible customization areas include:
Processor and motherboard configuration.
Memory and SSD capacity.
Operating system installation.
Camera and fingerprint modules.
Port selection.
Stand and mounting structure.
Housing color.
Logo printing and exterior branding.
Packaging and project-specific accessories.
The product supports desktop installation and can also be adapted for wall-mounted applications with a customized adapter plate. Standard wall-mounting options include 75 × 75 mm and 100 × 100 mm patterns, subject to the final configuration.
